NGK 6510

About this part.

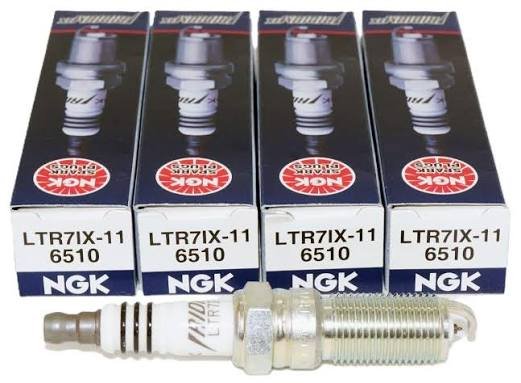

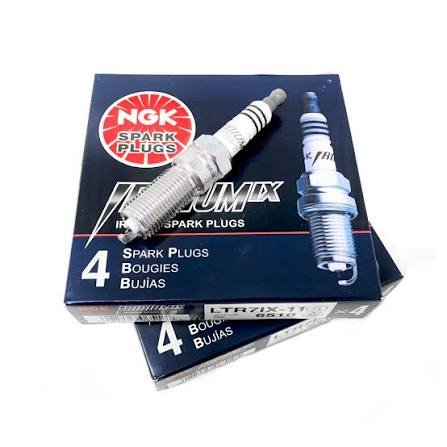

NGK 6510 LTR7IX-11 Iridium IX Spark Plug

One Step Colder | High-Performance Iridium Spark Plug

The NGK 6510 LTR7IX-11 Iridium IX is a one-step-colder performance spark plug designed for modified, turbocharged and high-performance engines.

Featuring NGK’s fine-wire Iridium centre electrode, the LTR7IX-11 provides excellent ignitability and consistent spark performance under demanding operating conditions. Its NGK Heat Range 7 makes it a popular upgrade for engines running increased boost, performance tuning and other power modifications.

For the Mazdaspeed 3 and Mazdaspeed 6 2.3 DISI Turbo, the NGK 6510 is one of the most commonly used one-step-colder plug options for modified vehicles.

KEY FEATURES

* NGK Part Number: 6510
* NGK Reference: LTR7IX-11
* Series: Iridium IX
* Heat Range: 7
* One step colder than the commonly referenced NGK heat-range-6 option
* Fine-wire iridium centre electrode
* Excellent ignitability
* Designed for high-performance applications
* Suitable for tuned and higher-boost setups
* Resistor-type spark plug
* Taper-cut ground electrode

SPECIFICATIONS

Thread Size: M14 × 1.25
Thread Reach: 25 mm
Hex Size: 16 mm / 5/8”
Seat Type: Tapered
Heat Range: 7
Factory Gap: 1.1 mm / .044”
Centre Electrode: Fine-wire Iridium
Ground Electrode: Nickel, tapered cut
Resistance: 5 kΩ

POPULAR APPLICATIONS

Mazda

* 2007–2013 Mazdaspeed 3 / Mazda 3 MPS – 2.3 DISI Turbo
* 2006–2007 Mazdaspeed 6 / Mazda 6 MPS – 2.3 DISI Turbo

Ford

* Focus ST – selected applications
* Focus RS – selected applications
* Fiesta ST – selected applications

Also suitable for various other performance applications requiring the NGK LTR7IX-11 / 6510 specification.

IMPORTANT – MAZDASPEED OWNERS

The NGK 6510 comes from NGK with an approximately 1.1 mm (.044”) gap. For modified Mazdaspeed 3/6 applications, this factory gap is generally too large.

The final plug gap should be set according to the vehicle’s modifications, boost level and tuner requirements. A commonly referenced range in the Mazdaspeed community is approximately 0.026”–0.028” (0.66–0.71 mm), but always follow the specification recommended by your tuner for your individual setup.

GAPPED PERFORMANCE TIP:
Running more boost? Don’t overlook your plugs. Correct heat range and plug gap are critical to maintaining a strong, consistent spark under cylinder pressure.

Sold individually / Set of 4 — select according to listing.

Always confirm vehicle, engine specification and required plug gap before installation.
